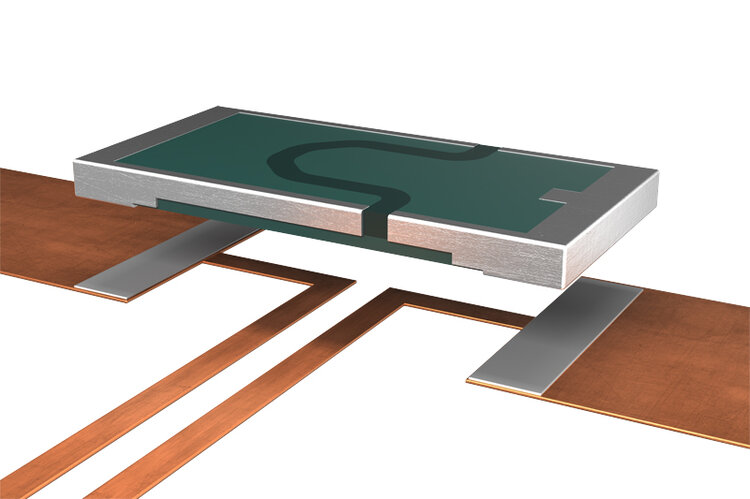

SMD stands for surface-mounted-device. By their connecting surfaces the SMD-components are soldered directly on a PCB. Our precision and power resistor in the field of SMD-mounting offer many advantages in standard sizes.

For detailed information about our Precision and Power resistors products click here.

TypePictureDescriptionDesignPowerToleranceTCRResistance (min)Resistance (max)Download
BRS BRS

2-terminal-resistors made of composite material. Ideal for use on DBC or ceramic. Space-saving design

3812 2 W 1 % 100 ppm/K 0.002 Ω 0.025 Ω Download
BVB BVB

4-terminal-resistors made of composite material. Ideal for use on DBC or ceramic. Space-saving design.

2725 12 W 1 % 20 ppm/K 0.0002 Ω 0.005 Ω Download
BVE BVE

2-terminal-resistors with large connectors for high performance.

5930 15 W 1 % 50 ppm/K 0.0001 Ω 0.003 Ω Download
BVH BVH

Solid copper connections

3820 5 W 3 % 300 ppm/K 0.0003 Ω 0.0005 Ω Download
BVN BVN

4-terminal resistor of composite material. Ideal for use on DBC or ceramic. Space-saving design.

1216 10 W 1 % 50 ppm/K 0.0003 Ω 0.003 Ω Download
BVR BVR

4-terminal resistor of composite material. Ideal for use on DBC.

4026 5 W 1 % 20 ppm/K 0.0002 Ω 0.003 Ω Download
BVS BVS

2-terminal resistor of composite material.

3920 12 W 1 % 50 ppm/K 0.0002 Ω 0.005 Ω Download
BVT BVT

2-terminal resistor of composite material.

2512 6 W 1 % 50 ppm/K 0.0003 Ω 0.0068 Ω Download
BVZ BVZ

4-terminal-resistors made of composite material. Ideal for use on DBC or ceramic. Space-saving design.

4026 9 W 1 % 60 ppm/K 0.000525 Ω 0.003 Ω Download
CLK CLK

NEW: 2-terminal resistor. Large solder pads. Very low resistance values.

0612 3 W 1 % 50 ppm/K 0.001 Ω 0.010 Ω Download
CLP CLP

NEW: 2-terminal resistor. Large solder pads. Very low resistance values.

1020 5 W 1 % 50 ppm/K 0.003 Ω 0.010 Ω Download
CMK CMK

2-terminal resistor for medium power requirements. Low TCR.

1206 1.25 W 1 % 50 ppm/K 0.008 Ω 0.100 Ω Download
CMP CMP

2-terminal resistor for medium power requirements. Low TCR.

2010 2 W 1 % 50 ppm/K 0.010 Ω 0.500 Ω Download
CMS CMS

2-terminal resistor for medium power requirements. Low TCR.

2512 2.5 W 1 % 50 ppm/K 0.010 Ω 0.500 Ω
FMH-K-R000 FMH-K-R000

Power bridge / jumper.

0603 0.135 W 3200 ppm/K 0.0002 Ω Download
FMK FMK

2-terminal-resistor. Low resistance values <= 6 milliohm. Good TCR.

1206 3.5 W 1/5 % <50 ppm/K 0.002 Ω 0.006 Ω Download
FMP FMP

2-terminal-resistor. Low resistance values <= 6 milliohm. Good TCR.

2010 3.5 W 1/5 % <50 ppm/K 0.002 Ω 0.006 Ω Download
GMP GMP

4-terminal resistor with gold-plated contact surface.

2010 1 W 1 % 50 ppm/K 0.010 Ω 0.080 Ω Download
PMT PMT

New pulse load resistor for snubber circuits or pre-charging and discharging applications.

2817 7 W 10 % ppm/K 0.050 Ω 2.5 Ω Download
SMK SMK

2-terminal resistor with large solder pads.

1206 1.5 W 1 % 50 ppm/K 0.008 Ω 0.5 Ω Download
SMK-R000 SMK-R000

Power bridge / jumper

1206 0.5 W 3800 ppm/K 0.0002 Ω Download
SMP SMP

2-terminal resistor with large solder pads.

2010 3 W 0.5 % 50 ppm/K 0.005 Ω 1 Ω Download
SMS SMS

2-terminal resistor with large solder pads.

2512 5 W 0.5 % 50 ppm/K 0.005 Ω 1 Ω Download
SMS-R000 SMS-R000

Power bridge / jumper. Standard solder pad geometry.

2512 2 W 3800 ppm/K 0.0002 Ω Download
SMT SMT

2-terminal resistor with large solder pads.

2817 7 W 0.5 % 50 ppm/K 0.004 Ω 4.7 Ω Download
SMT-R000 SMT-R000

Power bridge / jumper. Standard solder pad geometry.

2817 2 W 3800 ppm/K 0.0002 Ω Download
VLK VLK

2-terminal resistor. Large solder pads. Very low resistance values.

0612 3 W 1 % 50 ppm/K 0.001 Ω 0.005 Ω Download
VLP VLP

2-terminal resistor. Long side terminated. Large solder pads. Very low resistance values.

1020 5 W 1 % 50 ppm/K 0.003 Ω 0.006 Ω Download
VMI-5.0 VMI

2-terminal resistor. Standard solder pad geometry. Low TCR.

0805 0.5 W 5 % 30 ppm/K 0.01 Ω 0.05 Ω Download
VMI-1.0 VMI-1.0

2-terminal resistor. Standard solder pad geometry. Low TCR.

0805 0.75 W 1 % 30 ppm/K 0.01 Ω 0.100 Ω Download
VMI-R000 VMI-R000

Power bridge / jumper.

0805 0.25 W 3200 ppm/K 0.0002 Ω Download
VMK VMK

2-terminal resistor. Standard solder pad geometry. Low TCR.

1206 bis 1.5 W 1 % 20 ppm/K 0.01 Ω 0.47 Ω Download
VMK-NA VMK-NA

2-terminal resistor. Standard solder pad geometry. Low TCR. Gold-plated contact.

1206 1.5 W 1 % 20 ppm/K 0.1 Ω 0.1 Ω Download
VMP VMP

2-terminal resistor. Standard solder pad geometry. Low TCR.

2010 bis 3 W 1 % 20 ppm/K 0.005 Ω 1 Ω Download
VMP-NA VMP-NA

2-terminal resistor. Standard solder pad geometry. Low TCR. Gold-plated contact.

2010 2 W 1 % 20 ppm/K 0.025 Ω 0.080 Ω Download
VMS VMS

2-terminal resistor. Standard solder pad geometry. Low TCR.

2512 bis 4 W 1 % 20 ppm/K 0.005 Ω 1 Ω Download
WAF WAF

2-terminal current sensing resistor, very small size, low resistance values <= 1 mΩ

1213 7 W 1 % 30 ± 40 ppm/K 0.000487 Ω 0.001 Ω Download
WAK WAK

2-terminal current sensing resistor, very small size, low resistance values <= 1 mΩ

1206 6 W 1 % 100 ppm/K 0.0005 Ω 0.001 Ω Download

Features

  • Permanent power up to 15 W
  • Constant currents up to 220 A
  • Small size, e.g. 0805 or 1206
  • Very high pulse power rating
  • Very good long-term stability
  • Low TCR
  • Extremely low Rthi
  • Components mounting: Reflow- and IR-soldering, (conductive adhesive) bonding
  • Mainly standard-soldering-pad-geometry
  • Many components with AEC-Q200-qualification
  • RoHS compliant

Advantages

  • Very low thermal EMF versus copper (under 1 µV/K)
  • Large soldering and contact field
  • High mechanical strength of the solder joint
  • Impervious to thermocycling

All information represents the best possible values.
