ISABELLENHÜTTE & FUTAVIS - A strong partnership
ISO26262-Certified Battery Management Unit with high performance components
When two experts join forces, the result is pioneering technology: In a powerful partnership with Futavis, a manufacturer of battery management systems and scalable batteries, we are co-designing an integrated battery management system (BMS) that meets automotive performance and safety standards. In a compact space, this BMS measures, stores, and controls all the vital parameters in a high-voltage system as well as taking charge of cell balancing, temperature monitoring, insulation monitoring, as well as current and voltage measurements.

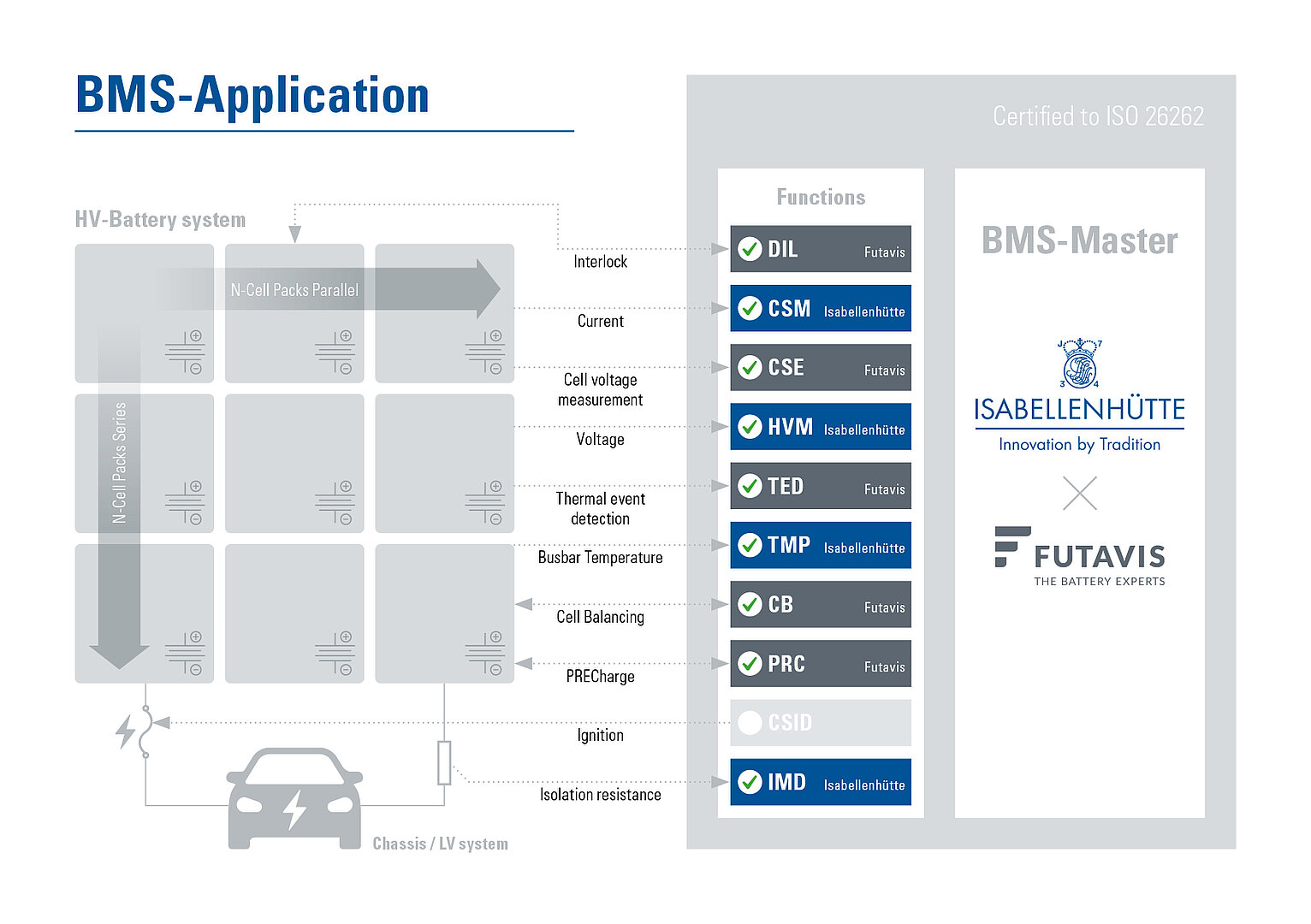

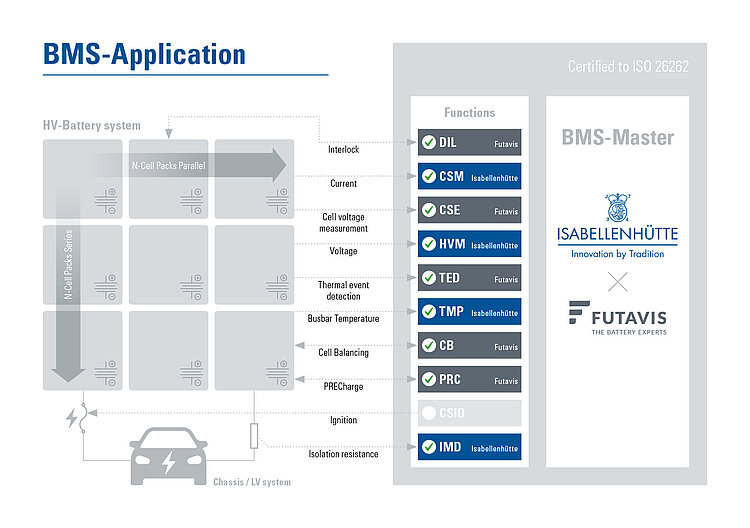

System overview

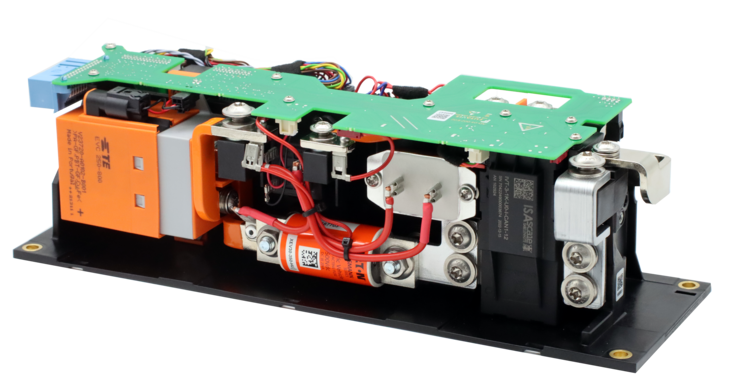

The key element of this battery management system is our IVT 3 current sensor. Futavis integrates the IVT 3 in its modular switch box (S-Box) and extends it particularly with the BMS Master, the CSCs (slave BMS) for measuring temperatures and voltage in the cell modules, and the modular BMU software platform.
The result is a secure, robust and, most importantly, certified integrated solution for high-voltage batteries in demanding electrical drive systems, which meets the most stringent technical requirements and offers customers simple system integration.
The system complies with international standards such as LV 123/124, DIN EN 60664-1 and ISO 26262.Thanks to the sophisticated design and the experience offered by both companies, the current measurement achieves an ASIL-C performance rating.
As an initial installation, we start with the integration of the IVT 3 Base.
In a future model, the IVT 3 Pro is incorporated with integrated insulation monitoring, which combines ASIL-C rated current measurement and insulation monitoring in a single component while meeting the strict standards of ISO 26262.
Legend
BMS - Battery Management System
CSM - Current Sense Module
HVM - High Voltage Monitoring
CSE - Cell Supervising Electronics
CSID - Current Triggered Short Circuit Interruption Device
CB - Cell Balancing
PRC - Precharging
DIL - Decentral Interlock (connection check)
TED - Thermal Event Detection
TMP - Busbar Temperature
IMD - Isolation Measurement Devi
Battery Management Unit - Selected Performance Data
-
| Feature | Value |
| DIL – Decentral interlock (connection check) | ASIL A – Monitoring on every HV-connection |
| CSM – Current Sense module | ASIL C – 0.4% accuracy |
| CSC – Cell supervising circuit | ASIL C – voltage monitoring up to 62x18 cells |
| HVM – High voltage monitoring | ASIL B – 0.4 % accuracy with up to 6 HV channels |
| TCM – Thermal cell monitoring | ASIL C – temperature monitoring of 62x8 NTC’s |
| TMP – Busbar temperature | QM – accuracy of +/- 5 °C |
| CB – Cell balancing | QM – passive balancing up to 300 mA |
| PRC – PRE charge | Brake Resistor customizable |
| IMD – Isolation measurement device | ASIL B - Active Isolation Measurement of PACK and LINK side |
