High Current Applications and Energy Measurement

Composite material (ISA-WELD®) for high current sensing and energy measuring. To assure an ideal transition these resistors are ideally mounted on a busbar.

TypePictureDescriptionDesignPowerToleranceTCRResistance (min)Resistance (max)Download
BAL BAL

Precision resistor, eg. for battery management systems or energy storage systems.

5216 (metrisch) 12 W 5 % 20 ± 40 ppm/K 0.0001 Ω 0.0001 Ω Download
BAN BAN

Precision resistor, eg. for battery management systems or energy storage systems.

8436 (metrisch) 36 W 5 % 100 ppm/K 0.000025 Ω 0.000025 Ω Download

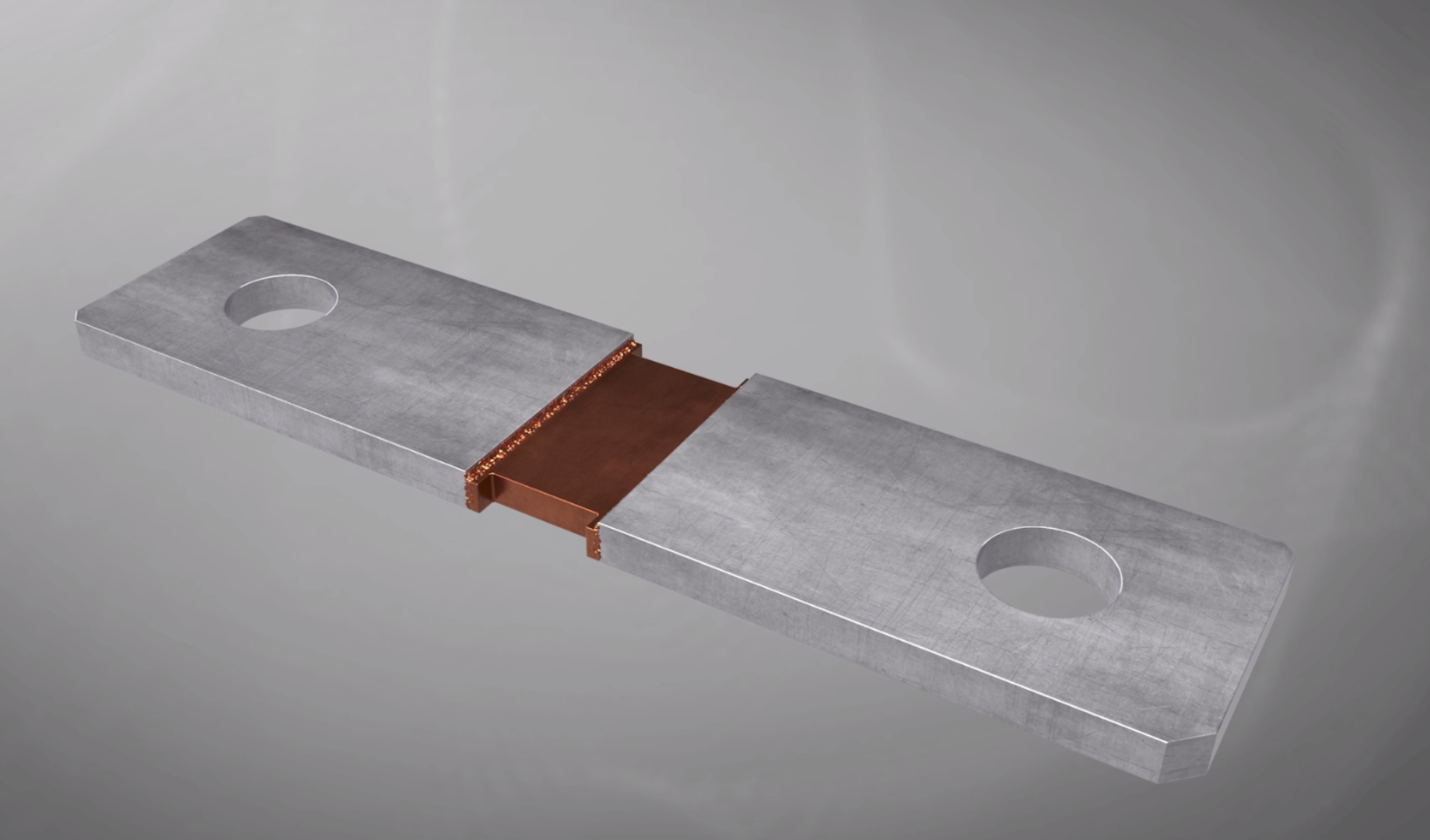

BAS BAS

Precision resistor, eg. for battery management systems or energy storage systems.

8420 (metrisch) 36 W 5 % 50 ppm/K 0.000035 Ω 0.0005 Ω Download
BAV BAV

Precision resistor, eg. for battery management systems or energy storage systems.

8420 (metrisch) 36 W 5 % 50 ppm/K 0.000035 Ω 0.0001 Ω Download
BAX BAX

Precision resistor, eg. for battery management systems or energy storage systems.

8436 (metrisch) 50 W 5 % 50 ppm/K 0.000005 Ω 0.00002 Ω Download
BKW BKW

4-terminal precision resistor eg. for energy meters / kWh meters.

2919 (metrisch) 3 W 5 % 20 ppm/K 0.0003 Ω 0.0005 Ω Download
BSS BSS

Analog sensor for battery management systems or energy storage systems.

8420 (metrisch) 20 W 5 % 50 ppm/K 0.0001 Ω 0.0001 Ω Download
BVD BVD

Precision resistor for kWh meters and battery charger. Power connection via threaded bolts.

3512 (metrisch) 3 W 5 % 50 ppm/K 0.0005 Ω 0.0005 Ω Download
BVM-F BVM-F

Precision resistor for kWh meters and battery charger. Power connection via threaded bolts.

3516 (metrisch) 5 W 5 % 50 ppm/K 0.0001 Ω 0.0005 Ω Download
KVM KVM

Precision resistor for battery management systems and battery charger.

3516 (metrisch) 7 W 5 % 50 ppm/K 0.00005 Ω 0.0001 Ω Download

Features

  • Continuous power up to 30 W
  • Constant current up to 350 A
  • Very good long-term stability
  • High current and pulse load capacity
  • Low ohmic current sensors
  • Made of electron beam welded composite material
  • RoHS compliant

Advantages

  • 4-terminal-connecting technology
  • Suitable for soldering temperatures up to 350 °C (except BAC)
  • Components are in case of correct handling nearly indestructible
  • Can be soldered and welded
  • Very low ohmic resistance values


All information represents the best possible values.
