Standard products

For each measurement requirement the appropriate measurement method. The ISAscale® product portfolio allows a fast, precise and high-resolution recording of the measurement values and reports the calibrated measurement value either via CANBUS (DC) or Delta Sigma Modulator data stream (AC).

Each of our three standard product families (IPC-Series, IVT-Series and ICD-Series) differ from the hardware-design, the concept and functionality.

concept

  • Delta Sigma Modulation 20 MHz sampling rate
  • with or without galvanic insulation of supply voltage 1.5 kV DC permanent
  • TTL/LVDS
  • 0.5% of rdg. accuracy
  • 1 mA resolution
  • 400 kHz bandwith

function

  • AC phase current measurement

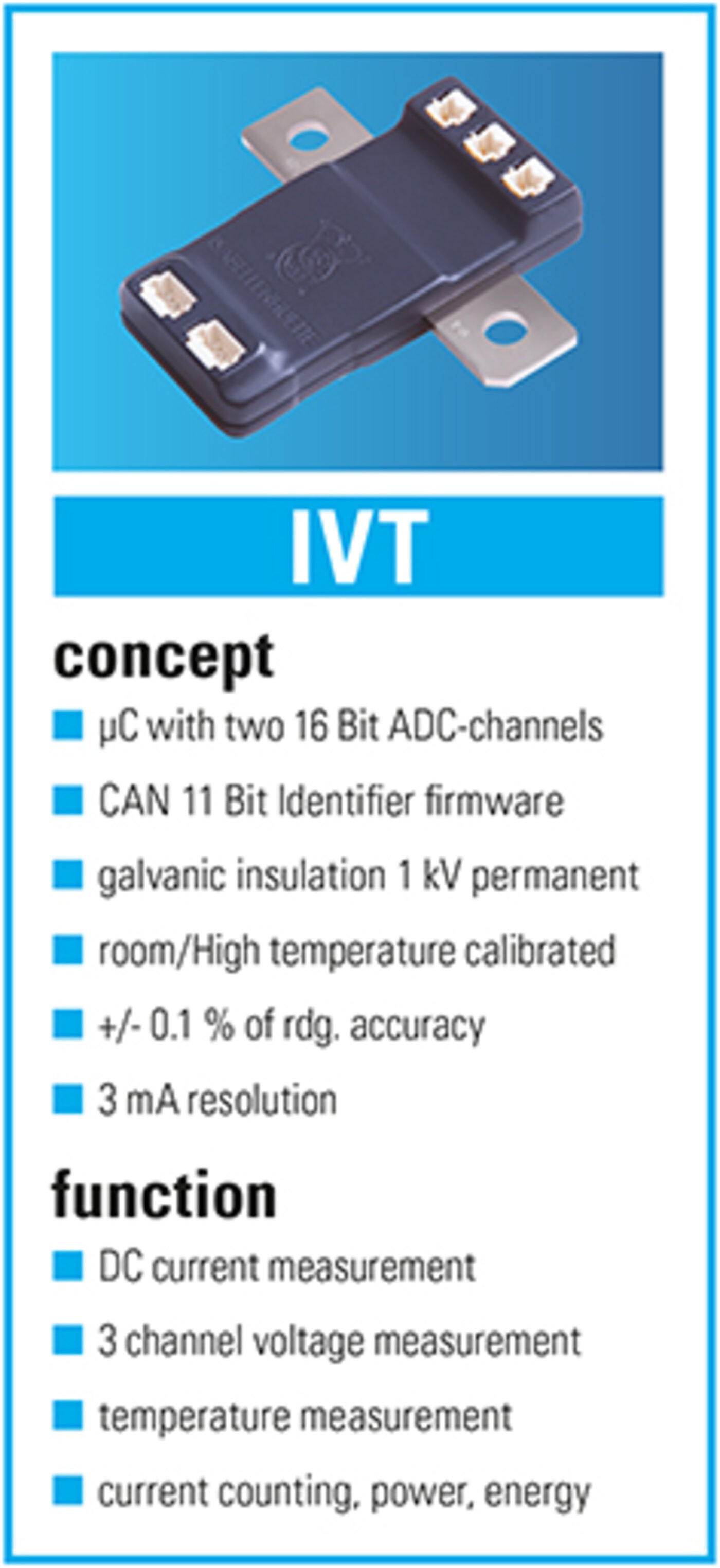

concept

  • uC with two 16 Bit ADC-channels
  • CAN 11 Bit Identifier firmware
  • galvanic insulation 1 kV permanent
  • room/High temperature calibrated
  • +/-0.1 % of rdg accuracy
  • 3 mA resolution

function

  • DC current measurement
  • 3 channel voltage measurement
  • temperature measurement
  • current counting, power, energy

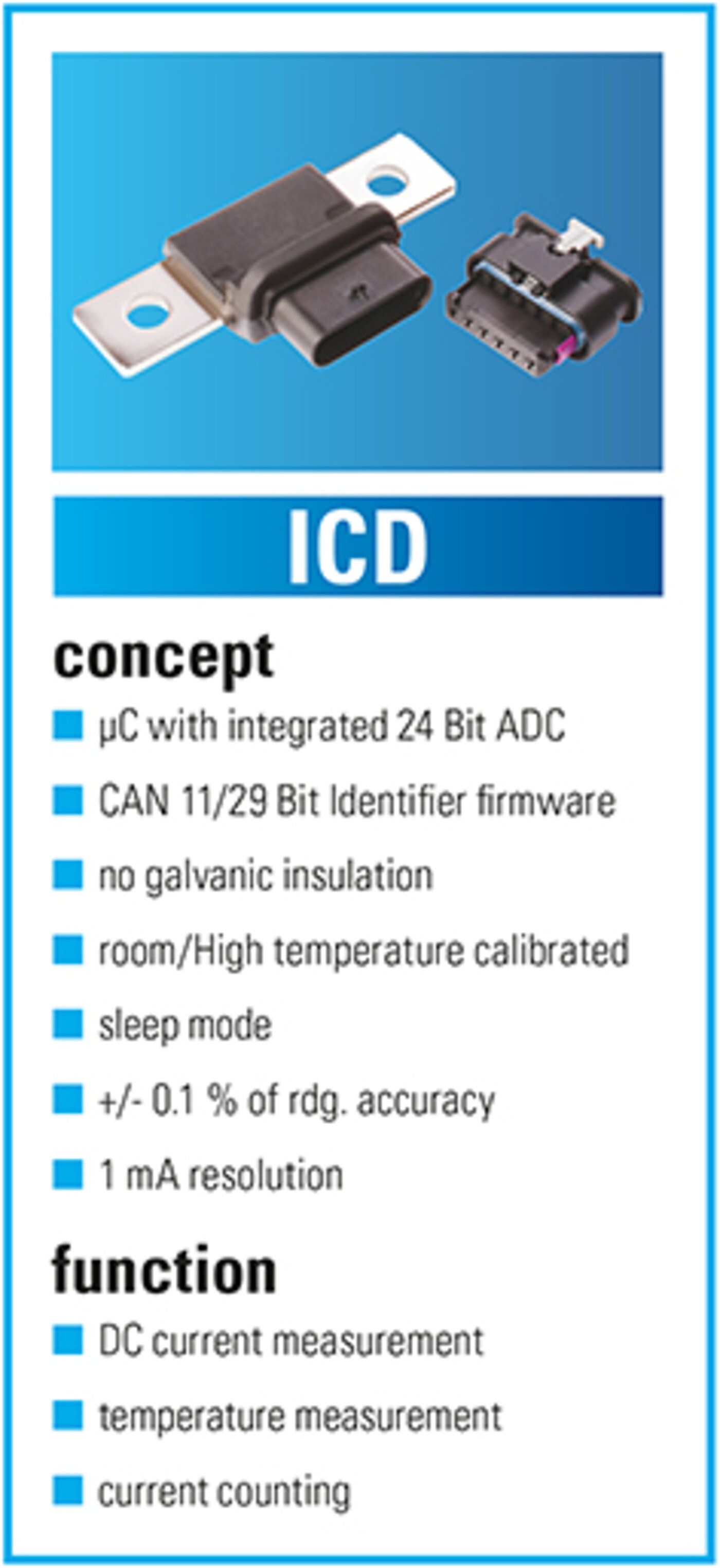

concept

  • uC with two 24 Bit ADC-channels
  • CAN 11/29 Bit Identifier firmware
  • no galvanic insulation
  • room/High temperature calibrated
  • sleep mode
  • +/-0.1 % of rdg. accuracy
  • 1 mA resolution

function

  • DC current measurement
  • temperature measurement
  • current counting
IPC-Serie
IVT-Serie
ICD-Serie
