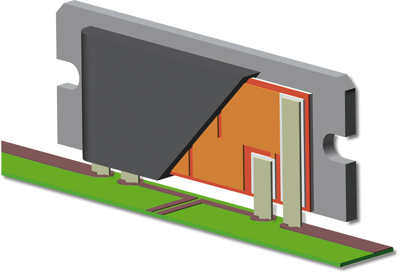

Printed Circuit Board and Head Sink assembly

Precision and power resistors with low self-heating, intelligent housing-shapes and easily mounted on a heatsink.

TypePictureDescription Design Power Tolerance TCR Resistance (min) Resistance (max) Download
A-HA-H

4-terminal resistor with low TCR. Low resistance values ​​for high accuracy.

** Installed on heat sink

4618,3825 (metrisch) 10** W 0.1 % 30 ppm/K 0.001 Ω 100 Ω Download
AZ-HAZ-H

4-terminal resistor with very low TCR. Low resistance values ​​for high accuracy. ** Installed on heat sink

4618,3825 (metrisch) 10** W 0.1 % 3 ppm/K 0.002 Ω 1 Ω Download
PBHPBH

2-terminal resistor in space-saving design similar to TO 247. ** Installed on heat sink

TO-247 (ähnlich) 10** W 0.5 % 50 ppm/K 0.002 Ω 100 Ω Download
PBVPBV

4-terminal resistor in space-saving design. ** Installed on heat sink

2317 (metrisch) 10** W 0.5 % 30 ppm/K 0.0005 Ω 1 Ω Download
PBV-ZPBV-Z

4-terminal resistor in space-saving design. ** Installed on heat sink

2317 (metrisch) 10** W 1 % 5 ppm/K 0.003 Ω 10 Ω
PSBPSB

2-terminal resistor in space-saving design similar to TO-247. ** Installed on heat sink

TO-247 (ähnlich) 10** W 1 % 50 ppm/K 0.005 Ω 1 Ω Download

Features


  • Permanent power up to 10 W
  • Constant currents up to 70 A
  • Ultra low resistance values
  • Very high pulse power rating
  • Very good long-term stability
  • Lower TC values start at 3 ppm/K
  • Heatsink and PCB-mounting possible
  • RoHS compliant


Advantages


  • 4-terminal-connection technology (A-H, AZ-H, PBV)
  • Suitable for wave- and manual-soldering
  • Highest precision




All information represents the best possible values.
