Energy reference meter IEM
The IEM enables efficient use in various charging infrastructure applications, such as DC wallboxes, high-power chargers, megawatt charging systems and other applications as well as smart metering point operation.
Installation flexibility
Thanks to the shunt-based measurement, the DC meter is highly compact. The display unit (DU) and the sensor unit (SU) can be installed up to 15 meters apart, which allows a high degree of flexibility during installation. This means that the sensor unit can also be installed in hard-to-reach areas with high ambient loads.The top-hat rail design makes it easy to mount the display unit in a wide variety of housings, while the sensor unit can be attached via busbars.
The CAN interface allows the acquisition of real-time measurement data
(T, I, U, P, ...) in 10 ms.
Characteristics:
- Accuracy class B according to EN 50470 (MID)
- Creation and internal storage of load transactions in standardized OCMF format
- MID certification, certification in accordance with the German Weights and Measures Act, LNE
- Communication interfaces: OCMF (RJ45, Ethernet, IEM-DCR only), CAN info for real-time measurement data
- Compensation options: 4-wire measurement, parametric compensation
DC meters for various applications

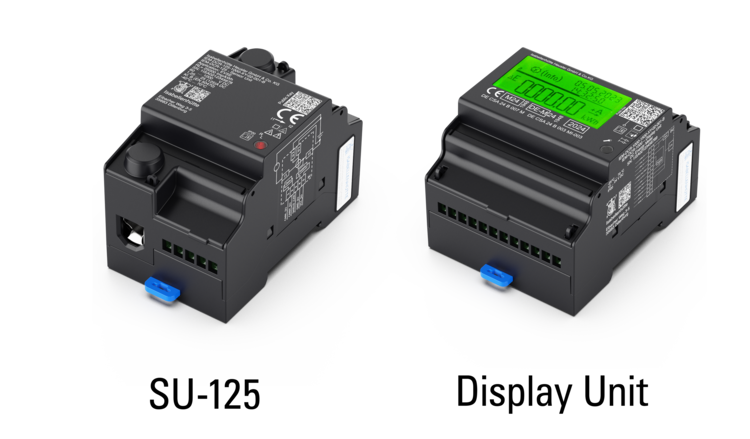

IEM-DCR-125 - Sensor Unit and Display Unit
- SU-125: Nominal current measuring range at 125 A and 1000 V
- The top-hat rail design for mounting in a wide variety of housings
- 2 voltage channels
- MID certification, certification in accordance with the German Measurement and Verification Act, LNE
- Areas of application: DC wall boxes and smaller DC charging stations
IEM-DCS-125 sensor unit for stand-alone operations
- SU-125: Nominal current measuring range at 125 A and 1000 V
- Measurement data is recorded in real time
- Signing of measured values
- Areas of application: DC wall boxes up to 125 A

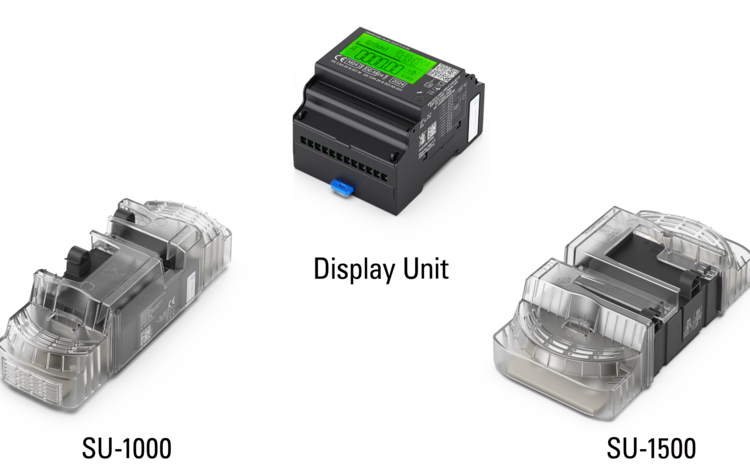

IEM-DCR-1000/-1500 – sensor unit and display unit
- SU-1000: Nominal current measuring range at 1000 A, 1500 V
- SU-1500: Nominal current measuring range at 1500 A, 1500 V
- 4 voltage channels
- Sensor unit can be mounted via busbar
- MID certification, certification in accordance with the German Weights and Measures Act, LNE
- Areas of application: DC charging stations, megawatt charging systems
IEM-DCS-1000/-1500 – sensor unit for stand-alone operations
- SU-1000: Nominal current measuring range at 1000 A, 1500 V
- SU-1500: Nominal current measuring range at 1500 A, 1500 V
- Measurement data is recorded in real time
- Signing of measured energy values
- Sensor unit can be mounted via busbar
- Areas of application: Fast charging systems, ultra-fast charging systems, megawatt charging, DC wall boxes, smart grid
(IEM-DCS-1500)

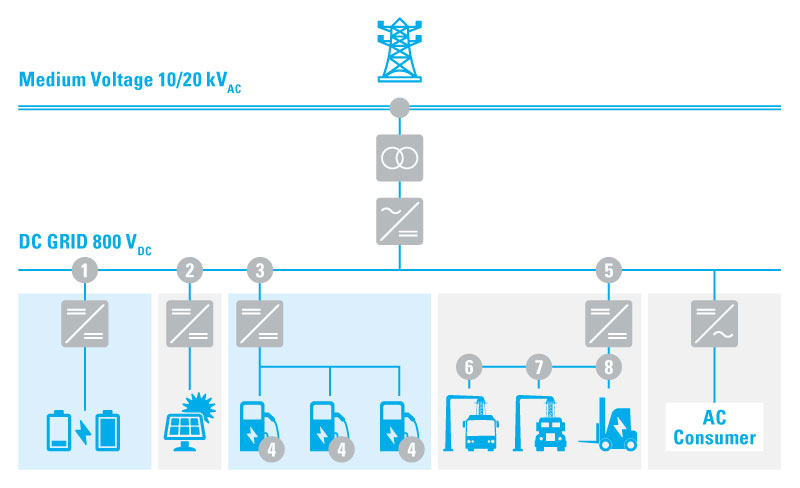

- DC meter @ stationary energy storage
- DC meter @ PV energy generation
- DC meter @ public charging facility
- DC meter @ public charging facility (charging session billing)
- DC meter @ commercial vehicle charging facility
- DC meter @ e-bus pantograph
- DC meter @ MCS Megawatt Charging System
- DC-Meter @ Intra-Logistics
